CSS106 (RB260) series Manual

Features

Features	Description
Forwarding	Full non-blocking wirespeed switching Up to 2k MAC entries in the Host table Forwarding Database works based on SVL or IVL Port Isolation Port Lock Jumbo frame support - 9198 bytes
Spanning Tree Protocol	RSTP support
Multicast Forwarding	IGMP Snooping support
Mirroring	Port-based mirroring
VLAN	Fully compatible with IEEE802. Port-based VLAN VLAN filtering
Quality of Service (QoS)	Ingress traffic limiting (by ACL) Egress traffic limiting
Access Control List	Ingress ACL tables Up to 32 ACL rules (limited by SwOS) Classification based on ports, L2, L3, L4 protocol header fields ACL actions include filtering, forwarding, and modifying the protocol header fields

---

Connecting to the switch

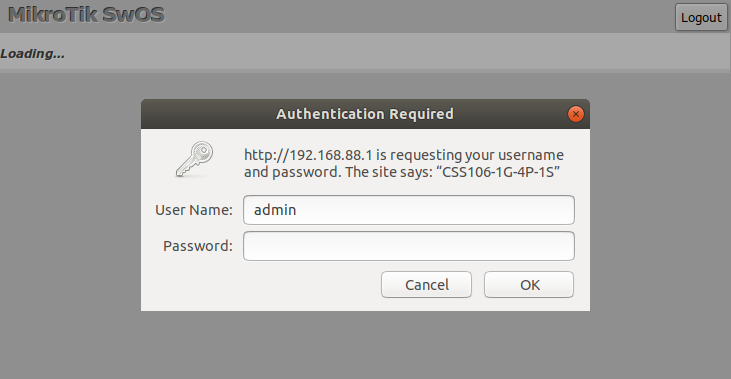

Open your web browser and enter the IP address of your switch (192.168.88.1 by default) and a login screen will appear. The switch can also run a DHCP client, see if a different IP address has been assigned by the DHCP server.

SwOS default IP address: 192.168.88.1, user name: admin and there is no password.

MikroTik Neighbor Discovery can be used to discover the IP address of the Mikrotik switch. LLDP is not supported.

---

Interface Overview

SwOS interface menu consists of several tabs: Link, SFP, Forwarding, RST, Statistics, Errors, VLAN, VLANs, Hosts, IGMP Groups, SNMP, ACL, System and Upgrade.

Description of buttons in SwOS configuration tool:

• Append - add a new item to the end of the list
• Apply All - applies current configuration changes
• Cut - removes an item from the list
• Clear - reset properties of the item
• Discard Changes - removes unsaved configuration
• Insert - add a new item to the list (places it before current item)
• Sort - sort VLAN table by VLAN-IDs; sort host table by MAC addresses
• Change Password - changes the password of the switch
• Logout - logout from the current switch
• Reboot - reboot the switch
• Reset Configuration - reset configuration back to factory defaults
• Choose File - browse for upgrade or backup file
• Upgrade - upgrade the firmware of the switch using the selected file
• Download & Upgrade - automatically try to download and upgrade the firmware, the PC which is running a web browser should be able to access the Internet
• Restore Backup - restore switch using a selected backup file
• Save Backup - generate and download backup file from the switch

Note: Each RouterBOARD switch series have their own firmware which cannot be installed on other series models! CSS106-5G-1S (RB260GS) and CSS106-1G-4P-1S (RB260GSP) supports SwOS v2.0 and newer. When upgrading the device, it will first load primary firmware and then make an upgrade. In case a wrong firmware file is chosen, the device will continue to operate with primary firmware and you will be able to choose the correct file.

---

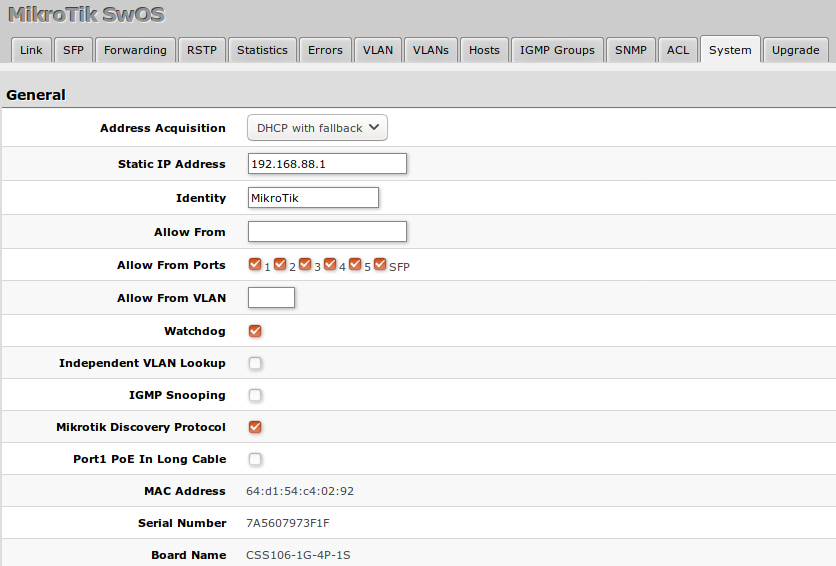

System

System Tab performs the following functions:

• General information about switch
• Switch management
• Configuration reset
• Backup and restore configuration

Note: SwOS uses a simple algorithm to ensure TCP/IP communication - it just replies to the same IP and MAC address packet came from. This way there is no need for Default Gateway on the device itself.

Property	Description
Address Acquisition	Specify which address acquisition method to use: DHCP with fallback - switch is trying to request an IPv4 address from a DHCP server. If the requests are unsuccessful, then the switch can be accessed using a Static IP Address value static - address is set as a Static IP Address value (IPv4 only) DHCP only - switch uses DHCPv4 client to acquire address
Static IP Address	IP address of the switch in case of Address Acquisition is set as DHCP with fallback or static
Identity	Name of the switch (for Mikrotik neighbor discovery protocol)
Allow From	IP address or network from which the switch is accessible. Default value is 0.0.0.0/0 - any address.
Allow From Ports	List of switch ports from which the service is accessible
Allow From VLAN	VLAN ID from which the service is accessible. Make sure to first configure VLANs and VLAN pages
Watchdog	Enable or disable system watchdog. It will reset CPU of the switch in case of fault condition
Independent VLAN Lookup	Enable or disable independent VLAN lookup in the Host table for packet forwarding
IGMP Snooping	Enable or disable IGMP Snooping
IGMP Fast Leave	Enables or disables IGMP fast leave feature on the switch port. This property only has an effect when IGMP Snooping is enabled
Mikrotik Discovery Protocol	Enable or disable Mikrotik neighbor discovery protocol
Port1 PoE In Long Cable	If enabled, it will turn off short detection on all PoE out ports to allow the use of longer ethernet cables. This is potentially dangerous setting and should be used with caution. (CSS106-1G-4P-1S model)
MAC Address	MAC address of the switch (read-only)
Serial Number	Serial number of the switch (read-only)
Board Name	MikroTik model name (read-only)
Voltage	Shows the input voltage measured in volts (read-only, CSS106-1G-4P-1S model)
Temperature	Shows PCB temperature in celsius temperature scale (read-only, CSS106-1G-4P-1S model)

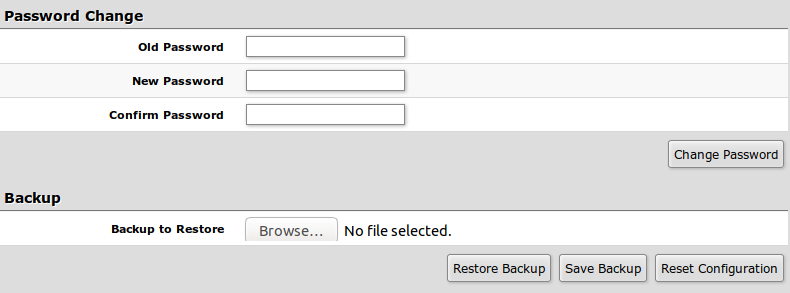

Password and Backup

---

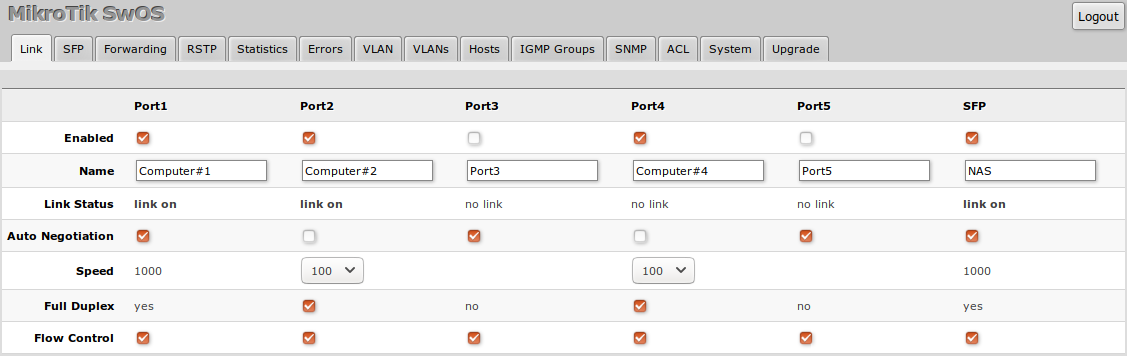

Link

Link Tab allows you to:

• Configure Ethernet and SFP ports
• Monitor status of Ethernet and SFP ports

Property	Description
Enabled	Enable or disable port
Name	Editable port name
Link Status	Current link status (read-only)
Auto Negotiation	Enable or disable auto-negotiation (some SFP modules may require it disabled in order to work)
Speed	Specify speed setting of the port (requires auto-negotiation to be disabled)
Full Duplex	Specify the duplex mode of the port (requires auto-negotiation to be disabled)
Flow control	Enable or disable 802.3x Flow control

Note: Using SFP+ 1m/3m DAC cable or S-RJ01 module, the device always shows that the link is established even if nothing is connected on another end.

The switch supports Jumbo frames up to 9198 bytes. Manually decreasing the MTU settings is not supported for SwOS devices.

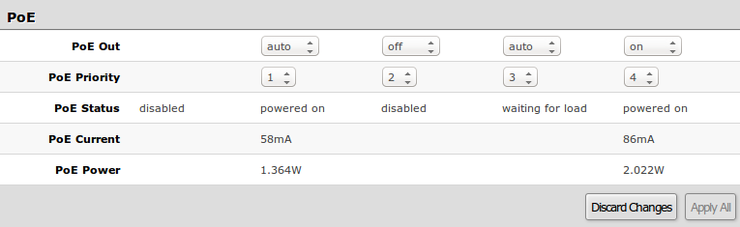

PoE

PoE settings change Power over Ethernet output on CSS106-1G-4P-1S port2-port5 and show PoE status and measurements.

Property	Description
PoE Out	Sets PoE out mode of the port: off - all detection and PoE out is turned off auto - detection is done regarding resistance on the spare pairs to check if the port has PoE capability. For a port to be turned on measured value should be within a range from 3kΩ to 26.5kΩ on - PoE out is enabled regardless of the resistance on the port. Use this with caution as that can damage connected equipment! calibr - manual port PoE out recalibration. It may be necessary if there are occasional problems with powering connected devices.
PoE Priority	Port priority for PoE out supply. If the installation is going over available power budget, the port with the lowest priority is going to be turned off first. 1 - the highest priority port; 4 - the lowest priority port
PoE Status	Current PoE out status of the port: disabled - PoE out is turned off waiting for load - auto mode detects out of range resistance to turn on PoE out powered on - PoE out is turned on short circuit - if it is detected, PoE out is turned off to ensure that there is no additional damage on the powered device and no damage on powering device voltage too low - not enough voltage supplied to turn on the device with PoE out current too low - not enough current supplied to turn on the device with PoE out waiting for cable disconnect - manual recalibration with calibr has detected connected device and waits for disconnection to complete the recalibration process
PoE Current	Shows current usage on the port measured in milliamperes
PoE Power	Shows PoE out power on the port measured in watts

---

SFP

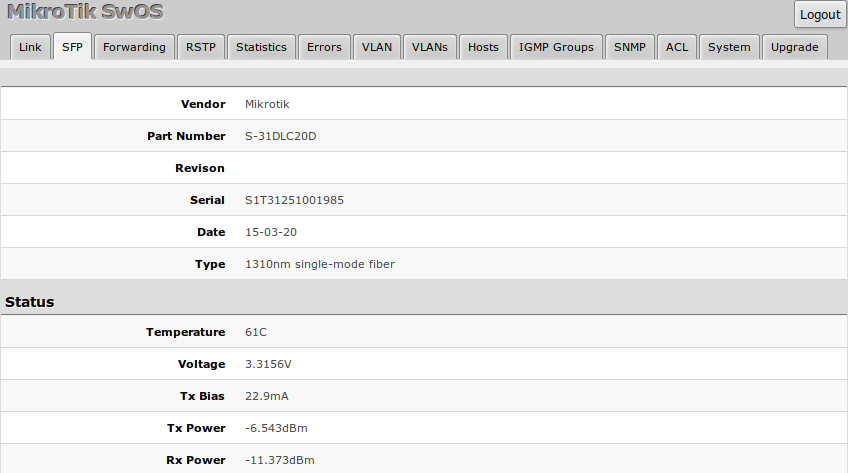

The SFP tab allows you to monitor the status of SFP modules.

---

Forwarding

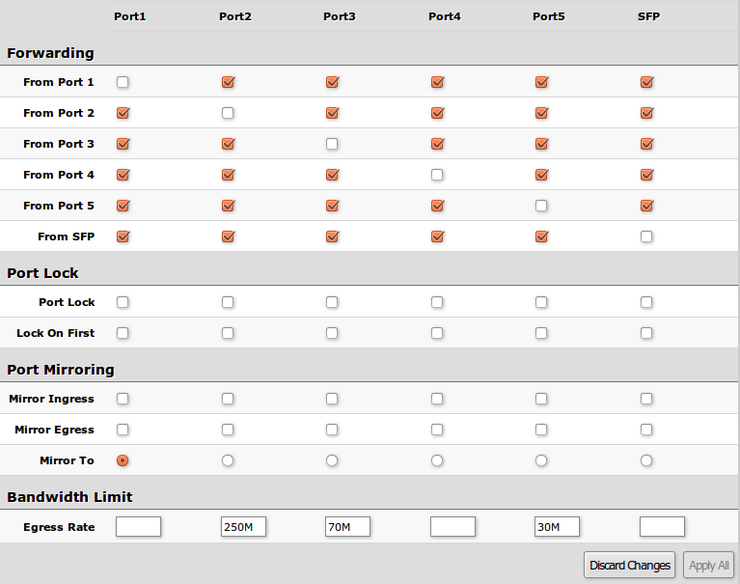

Forwarding Tab provides advanced forwarding options among switch ports, port isolation, port locking, port mirroring and egress bandwidth limit features. Ingress rate per port and rate for broadcast traffic can be configured with Access Control List by setting Rate. ACL must have one port per entry to provide bandwidth limiting properly.

Property	Description
Forwarding	Forwarding table - allows or restricts traffic flow between specific ports
Port Lock	Port Lock - Enables or disables MAC address learning on this port. When the option is enabled, it will restrict MAC address learning and static MAC addresses should be configured Lock On First - enable or disable MAC address learning on this port (MAC address from the first received packet will still be learned)
Port Mirroring	Mirror Ingress - whether traffic entering this port must be copied and forwarded to the mirroring target port Mirror Egress - whether traffic leaving this port must be copied and forwarded to the mirroring target port Mirror To - mirroring target port
Bandwidth Limit	Egress Rate - limit traffic leaving this port (bps)

---

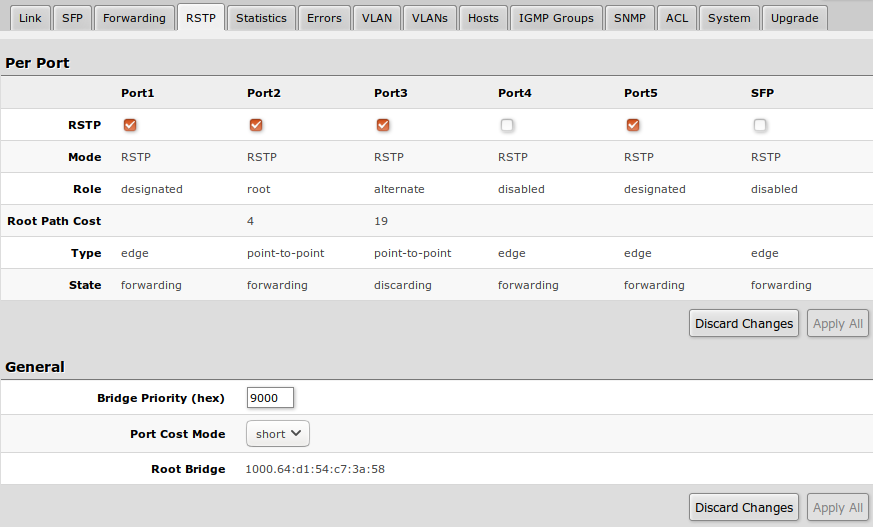

RSTP

Per-port and global RSTP configuration and monitoring are available in the RSTP menu.

Property	Description
RSTP	Enable or disable STP/RSTP functionality on this port
Mode	Shows STP/RSTP functionality mode on a specific port (read-only): RSTP STP
Role	Shows specific port role (read-only): root - port that is facing towards the root bridge and will be used to forward traffic from/to the root bridge alternate - port that is facing towards root bridge, but is not going to forward traffic (a backup for root port) backup - port that is facing away from the root bridge, but is not going to forward traffic (a backup for non-root port) designated - port that is facing away from the root bridge and is going to forward traffic disabled - port that is not strictly part of STP (RSTP functionality is disabled)
Root Path Cost	Shows root path cost for ports that are facing root bridge (read-only)
Type	edge - ports that are not supposed to receive any BPDUs, should be connected to end station (read-only) point-to-point - ports that operate in full-duplex links, can be part of STP and operate in forwarding state (read-only)
State	Shows each port state (read-only): forwarding - port participates in traffic forwarding and is learning MAC addresses, is receiving BPDUs discarding - port does not participate in traffic forwarding and is not learning MAC addresses, is receiving BPDU learning - port does not participate in traffic forwarding, but is learning MAC addresses
Bridge Priority (hex)	RSTP bridge priority for Root Bridge selection
Port Cost Mode	There are two methods for automatically detecting RSTP port cost depending on link speed. short: 10G - 2; 1G - 4; 100M - 10; 10M - 100 long: 10G - 2000; 1G - 20000; 100M - 200000; 10M - 2000000
Forward Reserved Multicast	Whether to forward IEEE reserved multicast MAC address that are in the 01:80:C2:00:00:0x range. Switches compliant with R/M/STP standards should refrain from forwarding these packets. If you enable this setting, SwOS will forward reserved multicast MAC packets and disable RSTP: - the switch will not process incoming BPDUs (Bridge Protocol Data Units) - it will also not send its own BPDUs - Bridge Priority and per-port RSTP configuration settings will no longer have any effect. Enabling forwarding of reserved MAC addresses may affect certain protocols relying on these addresses. It is advisable to enable forwarding only when absolutely necessary, such as in transparent bridging setups (e.g., extending long links, using bridge as media converters, or conducting network analysis). Notable MAC addresses and protocol examples (used by RouterOS): 01:80:C2:00:00:00 - Spanning Tree Protocol (STP) 01:80:C2:00:00:01 - Ethernet Flow Control 01:80:C2:00:00:02 - Link Aggregation Control Protocol (LACP) 01:80:C2:00:00:03 - Dot1x client and server 01:80:C2:00:00:08 - Spanning Tree Protocol (for 802.1ad bridges, using ether-type=0x88a8) 01:80:C2:00:00:0D - Multiple VLAN Registration Protocol (for 802.1ad bridges, using ether-type=0x88a8) 01:80:C2:00:00:0E - Link Layer Discovery Protocol, Multi-chassis Link Aggregation Group and Precision Time Protocol The Flow Control MAC address 01:80:C2:00:00:01 is an exception — it does not get forwarded by SwOS.
Root Bridge	The priority and MAC address of the selected Root Bridge in the network (read-only)

---

Statistics, Errors

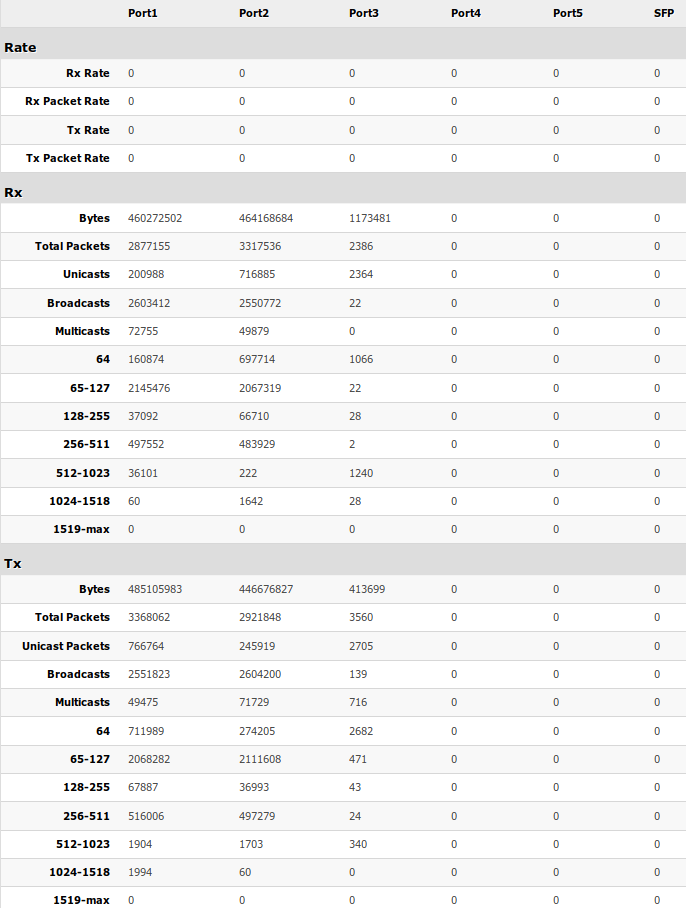

Provides detailed information about received and transmitted packets.

---

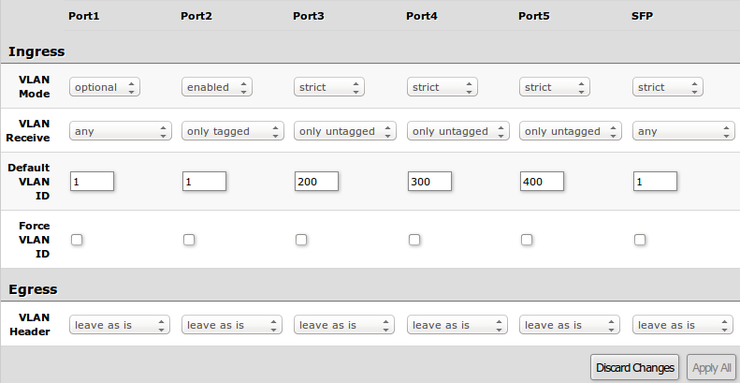

VLAN and VLANs

VLAN configuration for switch ports.

Property	Description
VLAN Mode	VLAN mode for ingress port: disabled - VLAN table is not used; switch ignores VLAN tag part of tagged packets optional - Handle packets with VLAN tag ID that is not present in VLAN table just like packets without VLAN tag enabled - Drop packets with VLAN tag ID that is not present in VLAN table. Packets without VLAN tag are treated as tagged packets with Default VLAN ID strict - Same as enabled, but also checks VLAN support for inbound interface (drop packets with VLAN tag ID and ingress port that are not present in VLAN table)
VLAN Receive	Defines the type of allowed packets on ingress port: any - allows tagged and untagged packets on a certain port only tagged - allows only packets with a VLAN tag only untagged - allows only packets without a VLAN tag
Default VLAN ID	The switch will treat both untagged and "Default VLAN ID" tagged ingress packets as they are tagged with this VLAN ID. It is also used to untag egress traffic if the packet's VLAN ID matches "Default VLAN ID". The VLAN tag itself will only be added if there is VLAN Header = add if missing specified on the egress port
Force VLAN ID	Whether to apply Default VLAN ID to incoming packets with VLAN tag
VLAN Header	leave as is - if VLAN header is present it remains unchanged always strip - if VLAN header is present it is removed from the packet add if missing - if VLAN header is not present it is added to the packet (VLAN ID will be Default VLAN ID of ingress port)

Note: CSS106 devices running SwOS version 2.12 can filter RSTP BPDU packets when enabling VLAN filtering on ports (VLAN Mode enabled or strict). With SwOS version 2.13, it is recommended to set VLAN Receive to any on trunk ports.

Note: VLAN modes enabled and strict require VLAN ID 1 in the VLANs table to allow access of untagged traffic to the switch itself.

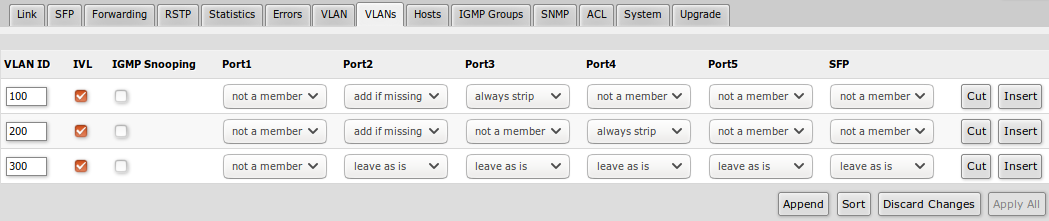

VLAN table specifies forwarding rules for packets that have an IEEE 802.1Q tag. Basically, the table contains entries that map specific VLAN tag IDs to a group of one or more ports. Packets with VLAN tags leave the switch through one or more ports that are set in the corresponding table entry. VLAN table works together with destination MAC lookup to determine egress ports. VLAN table supports up to 250 entries.

Property	Description
VLAN ID	VLAN ID of the packet
IVL	Enables or disables independent VLAN learning (IVL)
IGMP Snooping	Enables or disables IGMP Snooping on the defined VLAN. When enabled, the switch will listen to IGMP Join and Leave requests from the defined VLAN and only forward traffic to ports which have sent IGMP membership requests from the defined VLAN. When disabled, the switch will flood all VLAN member ports with Multicast traffic.
Ports	Each port has individual VLAN header options for each VLAN ID. Depending on VLAN mode, if lookup is done in this table, the egress action of packets is processed by this option. The egress option from the VLAN tab is ignored.

VLAN Configuration Examples

Trunk and Access Ports

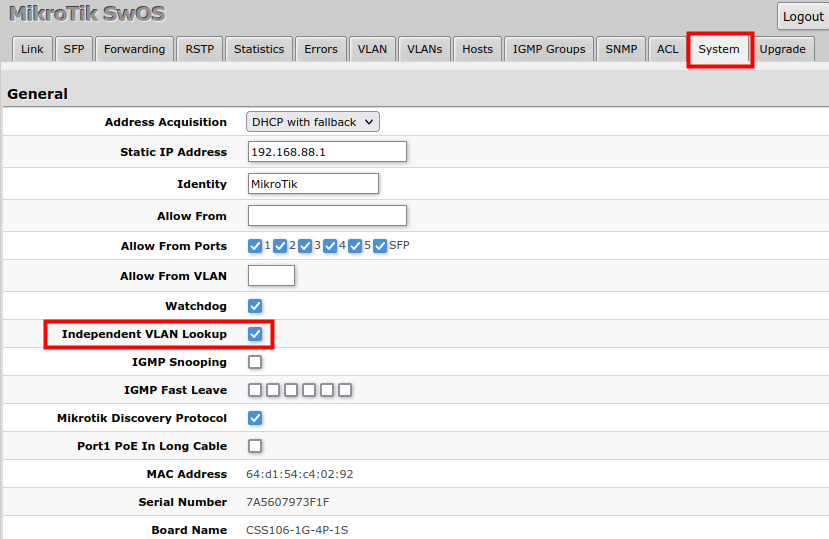

1. In the System menu enable independent VLAN learning (IVL).

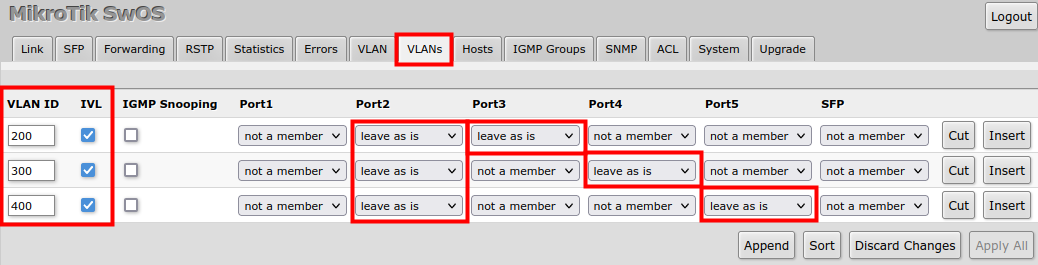

2. In the VLANs menu add VLAN entries, specify port membership, and enable IVL. The default "leave as is" port setting can be used; the tagging and untagging behavior can be changed with the "Default VLAN ID" setting, see the next step.

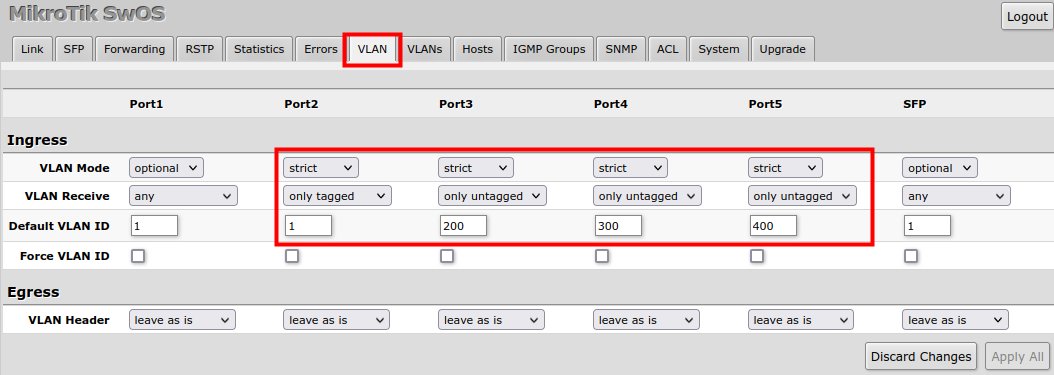

3. In the VLAN menu configure Default VLAN ID on planned access ports (untagged), select the correct VLAN Receive setting (Port2 only tagged, Port3-5 only untagged), and enable strict VLAN filtering to ensure only allowed VLANs can pass through the ports.

Note: CSS106 devices running SwOS version 2.12 can filter RSTP BPDU packets when enabling VLAN filtering on ports (VLAN Mode enabled or strict). With SwOS version 2.13, it is recommended to set VLAN Receive to any on trunk ports.

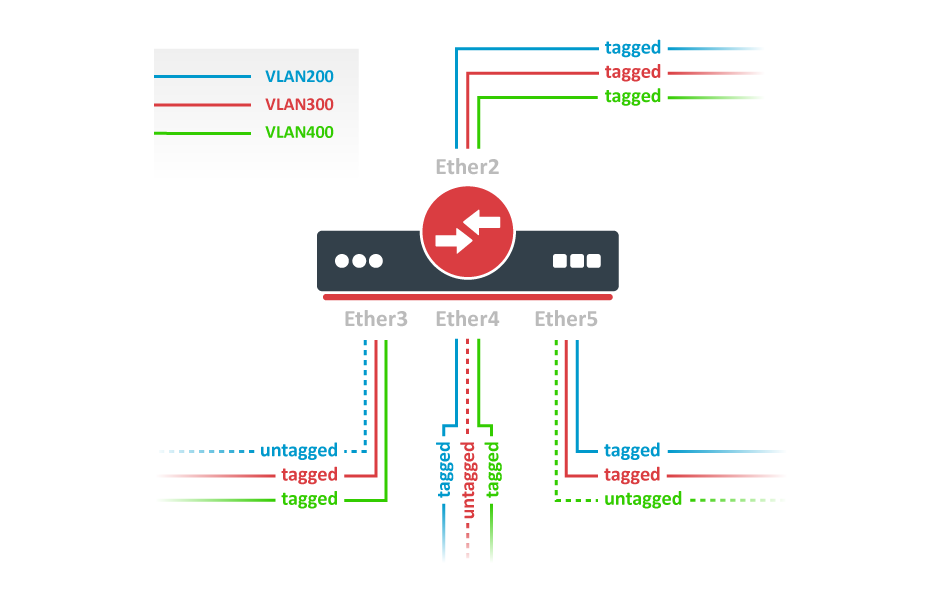

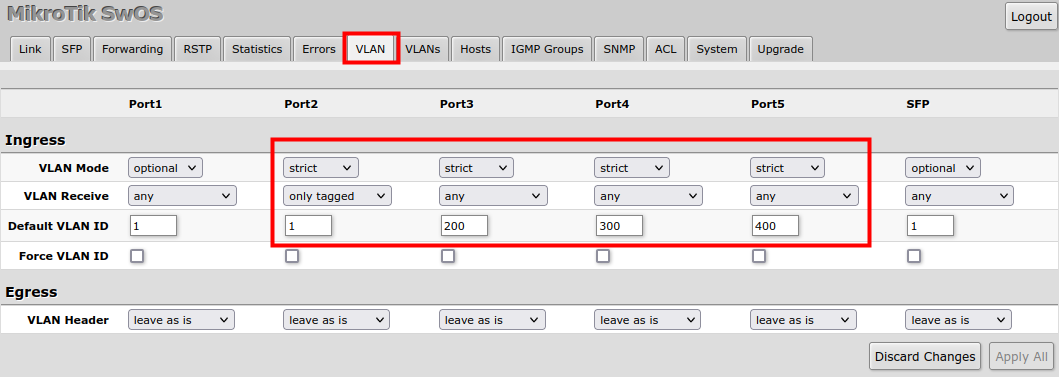

Trunk and Hybrid Ports

1. In the System menu enable independent VLAN learning (IVL).

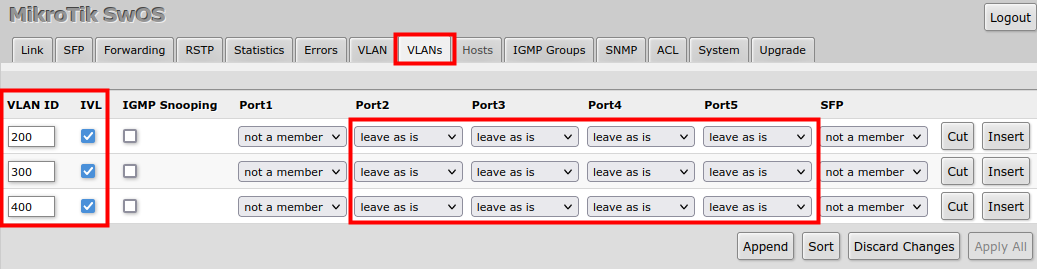

2. In the VLANs menu add VLAN entries, specify port membership, and enable IVL. The default "leave as is" port setting can be used; the tagging and untagging behavior can be changed with the "Default VLAN ID" setting, see the next step.

3. In the VLAN menu configure Default VLAN ID on planned hybrid ports (for untagged VLAN), select the correct VLAN Receive setting (Port2 only tagged, Port3-5 any), and enable strict VLAN filtering to ensure only allowed VLANs can pass through the ports.

Note: CSS106 devices running SwOS version 2.12 can filter RSTP BPDU packets when enabling VLAN filtering on ports (VLAN Mode enabled or strict). With SwOS version 2.13, it is recommended to set VLAN Receive to any on trunk ports.

Management Access

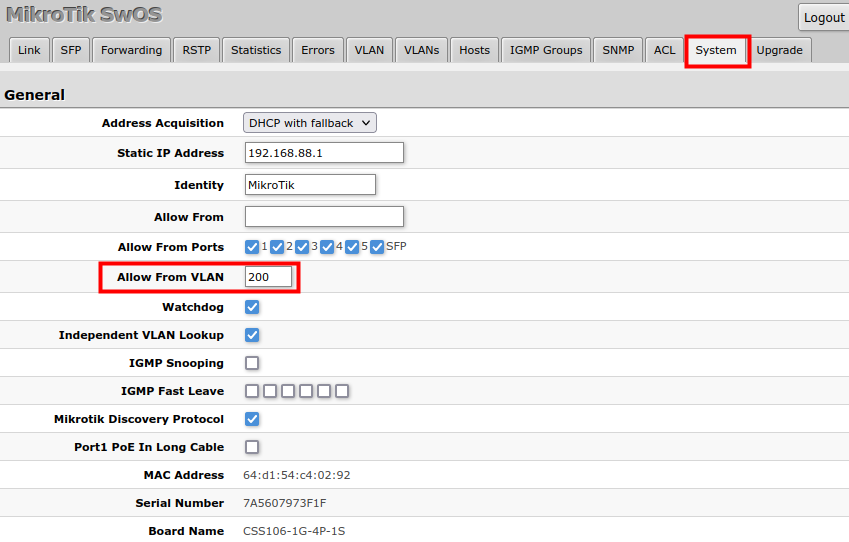

In this example, switch management access on VLAN 200 will be created. The configuration scheme is the same as "Trunk and Access Ports" and steps 1., 2., 3. are identical. The additional 4th step requires specifying the management VLAN ID in the System menu. After applying the configuration, the switch will only respond to tagged VLAN 200 packets on Port2 and untagged packets on Port3. The DHCP client will also work in the specified VLAN ID.

Warning: Changing management VLAN can completely disable access to the switch management if VLAN settings are not correctly configured. Save a configuration backup before changing this setting and use Reset in case management access is lost.

---

Hosts

This table represents dynamically learned MAC address to port mapping entries. It can contain two kinds of entries: dynamic and static. Dynamic entries get added automatically — this is also called a learning process: when a switch receives a packet from a certain port, it adds the packet's source MAC address X and port it received the packet from to the host table, so when a packet comes in with destination MAC address X it knows to which port it should forward the packet. If the destination MAC address is not present in the host table then it forwards the packet to all ports in the group (flood). Dynamic entries take about 5 minutes to time out.

CSS106 series switches support 2048 host table entries.

Property	Description
Port	Ports the packet should be forwarded to (read-only)
MAC	Learned MAC address (read-only)
VLAN ID	Learned VLAN ID (read-only)

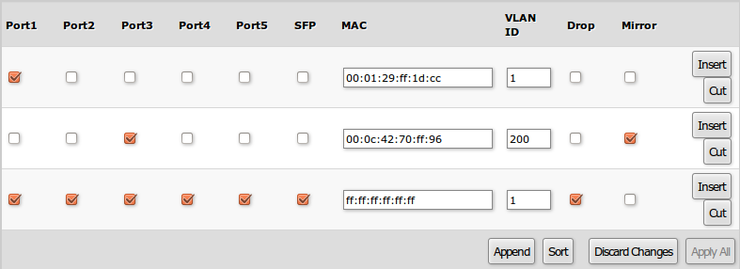

Static Hosts

Static entries will take over dynamic entries if a dynamic entry with the same MAC address already exists. Adding a static entry also provides access to additional functionality.

Property	Description
Ports	Ports the packet should be forwarded to
MAC	MAC address
VLAN ID	VLAN ID
Drop	Packet with certain MAC address coming from certain ports can be dropped
Mirror	Packet can be cloned and sent to mirror-target port

---

IGMP Groups

IGMP Snooping which controls multicast streams and prevents multicast flooding is implemented in SwOS starting from version 2.5. The feature allows a switch to listen in the IGMP conversation between hosts and routers.

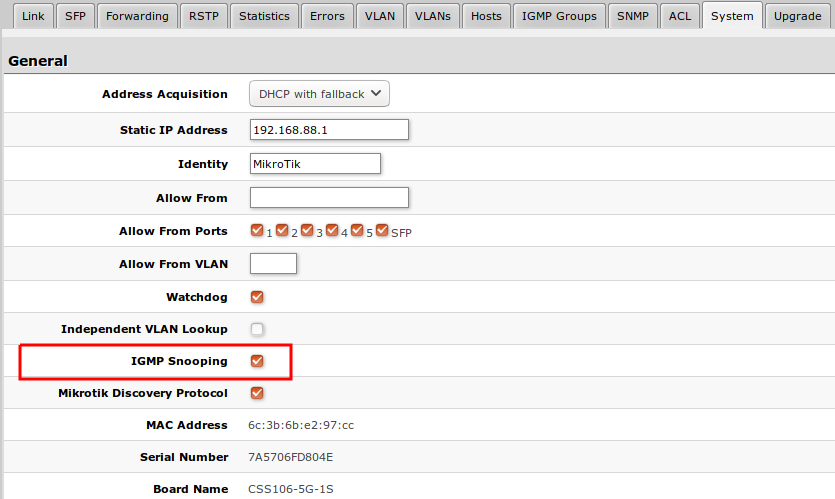

First, enable the option under the System tab.

Available IGMP snooping data can be found under the IGMP Group tab.

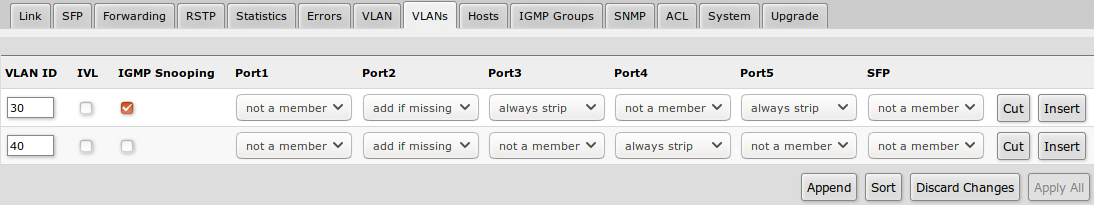

Possibility to enable or disable IGMP Snooping for a specific VLAN ID.

---

SNMP

SwOS supports SNMP v1 and v2c (the Response for GetRequest, GetNextRequest and GetBulkRequest) and uses IF-MIB, SNMPv2-MIB, BRIDGE-MIB and MIKROTIK-MIB (only for health, PoE-out and SFP diagnostics). SNMP traps and writing SwOS configuration are not supported.

Available SNMP data:

• System information
• System uptime
• Port status
• Interface statistics
• Host table information

Property	Description
Enabled	Enable or disable SNMP service
Community	SNMP community name
Contact Info	Contact information for the NMS
Location	Location information for the NMS

---

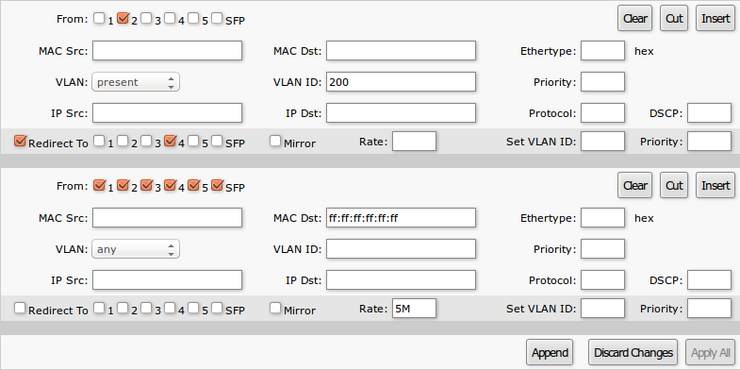

ACL

An access control list (ACL) rule table is a very powerful tool allowing wire-speed packet filtering, forwarding, and VLAN tagging based on L2, L3, and L4 protocol header field conditions. SwOS allows you to implement a limited number of access control list rules (32 simple rules where only L2 conditions are used; 16 rules where both L2 and L3 conditions are used; or 8 advanced rules where all L2, L3, and L4 conditions are used). Each rule contains a conditions part and an action part.

Conditions parameters

Property	Description
From	The port that the packet came in from
MAC Src	Source MAC address and mask
MAC Dst	Destination MAC address and mask
Ethertype	Protocol encapsulated in the payload of an Ethernet Frame
VLAN	VLAN header presence: any / present / not present
VLAN ID	VLAN tag ID
Priority	Priority in VLAN tag
IP Src (IP/netmask:port)	Source IPv4 address, netmask, and L4 port number
IP Dst (IP/netmask:port)	Destination IPv4 address, netmask, and L4 port number
Protocol	IP protocol
DSCP	IP DSCP field

Action parameters

Property	Description
Redirect To	Whether to force new destination ports (if "Redirect To" is enabled and no ports are specified in "Redirect To Ports", a packet will be dropped)
Redirect To Ports	Redirect destination ports
Mirror	Clones packet and sends it to mirror-target port
Rate	Limits bandwidth (bps)
Set VLAN ID	Changes the VLAN tag ID, if VLAN tag is present
Priority	Changes the VLAN tag priority bits, if VLAN tag is present

---

Reset

The CSS106-5G-1S and CSS106-1G-4P-1S have built-in backup SwOS firmware which can be loaded in case standard firmware breaks or upgrade fails:

• Holding the Reset button for a few seconds while the device is booting will reset the configuration and load backup firmware.
• After loading backup firmware, it is possible to connect to 192.168.88.1 (or a leased address from a DHCP server) using a web browser and install new SwOS firmware.
