Peripherals

This article describes supported add-on peripherals for RouterBOARD hardware devices.

Cellular modems​

RouterOS v7 supports the following cellular modems:

  • MikroTik modems.
  • Third-party modems supported by device class/type:
    • MBIM class USB interface
    • USB-CDC class USB interface
    • RNDIS type USB interface
  • Third-party modems with added support (see the modem table below).

Please note​

  • Not all modems are listed in the supported modem table. Some modems may work even if not listed because modem manufacturers often re-use the same hardware IDs, and vice versa.
  • Customized, localized, or locked units may have compatibility issues.
  • Third-party modems may require configuration adjustments before they can be used with RouterOS.

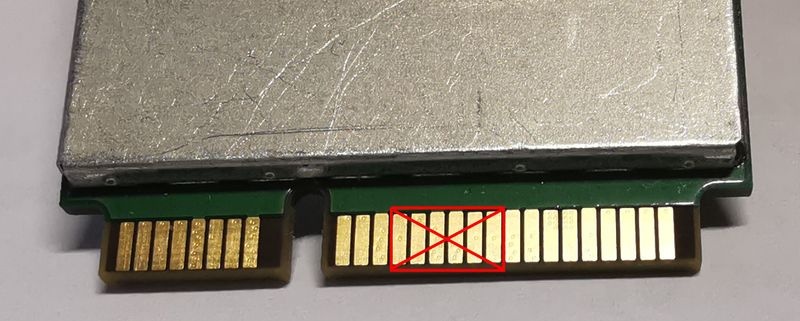

  • For mini-PCIe modems with a USB3.0 interface installed in a mini-PCIe slot with PCIe/USB2.0 support, the USB speed must be limited to USB2.0, or the mini-PCIe shared PCIe/USB3.0 pin must be isolated. See the picture below the table.

Cellular modems​

Modelvendor-iddevice-idTested RouterOS versionCommentsFormat
Alcatel IK40v6.41RC11LTE interface, Modem can be configured only through modem's configuration WEB page.USB
Alcatel IK41v6.48Config-less LTE interfaceUSB
Android usb tethering interfacev6.7Some settings are ignored.USB
AnyData ADU-E630WHv6( aka "USB Wireless HSDPA/UMTS 2.1GHz GSM/GPRS/EGPRS 900/17000MHz/CDMA 1x EVDO Rev.A")USB
Anteniti 3372h-1537.12USB
BandRich C501v5.25 and v6.0USB
Cinterion LTE Modem0x1e2d0x0061v7.14 and higherLTE interface, some settings are ignored. Not full SMS functionality.MiniPCI-e
D-link DWM-1570x20010x7d02v6.xxWorks! Data Channel: 2, Info Channel: 3, Modem Init: AT+CFUN=1, vendor-id="0x2001" device-id="0x7d02" Some info from modem: > H/W Ver.: B1, F/W Ver.: 2.0.1eu, revision: +CGMR: MOLY.WR8.W1231.DC.WG.MP.V3, 2013/04/09 02:08 Different HW revisions might not work with RouterOSUSB
D-link DWM-222See comments
Multiple modem versions with the same marketing name exist:
  • H/W ver: A1 - supported as config-less LTE interface from RoS v6.38
    Modem firmware version starting from "2.1.4EU".
  • H/W ver: A3 - works as config-less LTE using modem firmware provided RNDIS interface (RouterOS v7 only)
USB
Dell DW5821ev7.4beta4 and higherMBIM driver. Revision: T77W968.F1.0.0.5.2.VZ.013 044M.2
Dell DW5821e-eSIM0x413c0x81e07.11 and higherMBIM driver. FW: T77W968.F1.0.0.5.2.GC.013. "at-chat" support addedM.2
DELL T99W1750x05c60x90d57.16 and higherMBIM driver. FW: T99W175.F0.1.0.0.9.GC.004. "at-chat" support addedM.2
Dell Wireless 5530 HSPAv6.1 and higherData channel 0, Info channel 0, init: AT+CFUN=1 (needs to manually change profile by command AT*ENAP=1,1)MiniPCI-e
Ericsson F5521gwv6.x and higherMiniPCI-e
Fibocom FM150-AE/FM150-NA0x2cb70x0111v7.1beta5MBIM driver. Revision: 89603.1000.00.01.01.03M.2
Fibocom NL-952-EAUv7.1beta5MBIM driver. Revision: 19600.7000.00.04.01.05M.2
Marvell PXA1802 based modems0x12860x4e31v7.2.2mini-PCIe
Huawei E153v6.31< and higherUSB
Huawei E171v6.xxWorks! ppp interface, vendorid=0x12d1 deviceid=0x140cUSB
Huawei e3131v6.xx and higherppp interfaceUSB
Huawei E3372h, E5576h, E8372h0x12d10x14dbv6.8Config-less LTE interface for modems with vendor-id="0x12d1" device-id="0x14db"
Models with suffixes -320 and -608 will not work with RouterOS v6, please use v7 instead
Models with suffixes -325 work only with arm cpu		USB
Huawei E3276-150v6.xxppp interfaceUSB
Huawei E3351v6.24 and higherUSB
Huawei E3531v6.24 or 6.40RC25There are different versions of this modem E3531-6 works from version 6.40RC25 as ppp, mbim is supported only from RouterOS V7USB
Huawei e398v6.xx and higherppp interfaceUSB
Huawei E5377v6.36.1MIFI unit. No serial support, but works with IP on LTE interfaceUSB
Huawei E5673s-609v6.xxLTE interfaceUSB
Huawei K5160v6.37
v7.0beta6		v6 and v7 - config-less LTE interface
v7 - by default will try to use the modem in MBIM mode		USB
Huawei K5161v6.47Config-less LTE interfaceUSB
Huawei ME909s-120v6.28Recommended modem firmware version 11.617.24.00.00. To reduce LTE interface IP subnet mask to /32 configure modem with at-chat command: /interface/lte/at-chat [find] input="AT^CUSTFEATURE=3,1"MiniPCI-e
Huawei ME909u-521v6.11MiniPCI-e
Huawei MU609v6.11MiniPCI-e
Huawei MU709s-2v6.28MiniPCI-e
Huawei MS2372h-517v7.12beta3ppp/serial interfaceUSB
Jaton MT421ev6.40RC32LTE interface with Ethernet emulation (no configuration possible), LTE supported bands 42/43MiniPCI-e
Netgear Unite Explore 815Sv6.41MIFI unit. No serial support, but works with IP on LTE interface.USB
Novatel USB730Lv6.41RC6LTE interfaceUSB
Olivetti Olicard 500v6.41RC11ppp interfaceUSB
Quectel EC20/EC21v6.xxppp interface, there is a page in the wiki about Quectel: articleMiniPCI-e
Quectel BG770x2c7c0x0700v6.47Serial/PPP interface, single AT/modem channelOEM module
Quectel BG95-M3v6.47Serial/PPP interface, single AT/modem channel
Will not work on wAP R ac boards.		mini-PCIe
Quectel BG96v6.45Serial/PPP interface, 2x AT/modem channelsmini-PCIe
Quectel EC25-EU0x2c7c0x0125v6.42ppp/LTE interface, there is a page in the wiki about Quectel ppp mode: article
RouterOS v6 CDC-ECM mode - LTE interface receive address in modem's internal network.
RouterOS v7 MBIM mode - LTE interface uses APN IP address.		MiniPCI-e
Quectel EG25-G0x2c7c0x01256.48.3RouterOS v6 CDC-ECM mode - LTE interface receive address in modems internal network.
RouterOS v7 MBIM mode - LTE interface uses APN IP address.
On some boards it may be required to disable SIM hot plug detection:


<br/>/interface/lte/set [find] modem-init="AT+QSIMDET=0,1"<br/>
MiniPCI-e
Quectel EM12-G0x2c7c0x0512v7.1beta5MBIM driverm.2
Quectel EP06v6.42ppp/LTE interface, there is a page in the wiki about Quectel: articleMiniPCI-e
Quectel RG255C-GLv7.18Basic support with at-chat, minimum firmware revision: RG255CGLABR01A04M4G_A0.004.A0.004
Modem composition: at+qcfg="usbnet",0		mini-PCIe
Quectel RM500Q-GL0x2c7c0x0800v7.1beta6MBIM driverm.2
Quectel RM500Q-AE0x2c7c0x0800v7.1beta6MBIM driverm.2
Quectel RM502Q-AE0x2c7c0x0800v7.1beta5MBIM driverm.2
Quectel RM510Q-GL0x2c7c0x08007.9MBIM driverm.2
Quectel UC15v6.xxWorks, ppp interfaceMiniPCI-e
Quectel UC20v6.xxWorks, ppp interfaceMiniPCI-e
R11e-4G0x2cd20x0003v6.42LTE interface. Supports multiple APN passthrough.MiniPCI-e
R11e-LTE60x2cd20x0004v6.39.2LTE interface. Supports multiple APN passthrough.MiniPCI-e
R11e-LTE0x2cd20x0001v6.39.2LTE interface. Supports multiple APN passthrough.MiniPCI-e
Sierra Netgear AirCard 320U6.41Customer tested the modem with firmware 03.05.23USB
Sierra wireless MC73xxv6.xx(ppp) v7.xx (LTE)Works! PPP interface. And starting with v7.xx it will support LTE interface with the modem switched to expose the MBIM interface. MC7304 tested with firmware SWI9X15C_05.05.67.00MiniPCI-e
Sierra Wireless MC7430v6.xx and higherData channel 2, Info channel 2, Modem init: AT+CGATT=0, Dial-command: AT+CGATT=1;D*99#, also needs 3.0 pins isolated (PINS:23,25,27,31,33)MiniPCI-e
Sierra Wireless MC74xxv7.1Basic functionality support for modems with MBIM interface/USB compositionmini-PCIe
Sierra Wireless MC7455v7.3beta37MBIM mode with extended support for USB compositions:
  • 1009 - diag,modem,mbim
  • 100D - diag,nmea,modem,mbim
mini-PCIe
Sierra Wireless MC7710/MC7700/MC7750v5.25, v6.0 and 6.40RC43If the modem uses firmware 3.5 it should be upgraded to 3.5.23.2 firmware release in order to work in RouterOS correctly again.MiniPCI-e
SIMcom SIM5360v6.xxWorks! Using PPP interface, vendor-id="0x05c6" device-id="0x9000"MiniPCI-e / USB w/ converter
SIMcom SIM71000x1e0e0x9001v6.xx(ppp) v7.xx (LTE)Works! PPP interface. And starting with v7.xx it will support LTE interface.MiniPCI-e / USB w/ converter
SIMCom SIM8202G-M.2v7.11MBIM driver supported: AT+CUSBCFG=usbid,1e0e,901em.2
SXT LTEv6LTE interface. Old version of SXT LTEBuilt-in
Tele2.ru LTE-D402v6.47Config-less LTE interface
Telecom NZ T-Stick ZTE MF-181v6.0rc13Data Channel=2, Info Channel=2, APN internet.telecom.co.nz, PHONE=*99#. Tested ok for both data and SMS on CCR1016-12GUSB
Telit FN980mv7.5AT#USBCFG=2m.2
Telit LE9100x1bc70x1201v6.xxppp interfaceMiniPCI-e
Telit LE910C1v6.46Non-configurable from RouterOSMiniPCI-e
Telit LM940v6.44LTE interface in some cases needs 3.0 pins isolated (PINS:23,25,27,29,31,33)MiniPCI-e
Telit LM960v6.46LTE interface in some cases needs 3.0 pins isolated (PINS:23,25,27,29,31,33)MiniPCI-e
TPS (Turning Point Solution) GCT450v6.48Config-less LTE interfaceMiniPCI-e
Vodafone (Huawei) K4203v7.xxNot supported in ROS v6, but as this modem supports MBIM driver support will be possible in ROS v7.USB
Vodafone K4201-Zv6.8Some settings are ignored. LTE interface.USB
Vodafone K4305v6.7Some settings are ignored.USB
Vodafone K5160v6.37Some settings are ignored.USB
Yota LU150v5.22 and v6.4Some settings are ignored.USB
Yota wifi modemv6.7Some settings are ignored.USB
Yota WLTUBA-107v6.0Some settings are ignored.USB
ZTE 821Dv6.xSet Info channel = 1, Data channel = 3, Dial command=ATDTUSB
ZTE AC5730v6.xUSB
ZTE ME3630-Ev6.40RC26ppp and LTE interfaceMiniPCI-e
ZTE MF110v6.28 and higherSet info channel = 2, data channel = 2, Dial command=ATM1L3DTUSB
ZTE MF823v6.8Some settings are ignored. For some devices it's needed to enter FACTORY mode to change operating state.USB
ZTE MF825Av6.xxSome settings are ignored.USB
ZTE MF827v6.8Some settings are ignored.USB
ZTE MF832Sv7.10Config-less support, may require to set some settings using at-chat or modem init stringUSB
ZTE MF833U10x19d20x1405v7.20.6Config-less LTE interfaceUSB
ZTE MF90v6.44beta32 and higherLTE interfaceUSB
warning

Not all modems are listed. Localized and locked units may have compatibility issues.

For some modems with USB3.0 support in some cases USB3.0 pins need to be isolated to ensure correct initialization:

SFP modules​

BrandModelRateConnector/Cable typeWavelengthTested withWorks / Doesn't
MikroTikS-85DLC05D1,25GDual LC, MM850nm*Check: SFP/SFP+ compatibility reference tableNatively supported
MikroTikS-31DLC20D1,25GDual LC, SM1310nm*Check: SFP/SFP+ compatibility reference tableNatively supported
MikroTikS-35LC20D1,25GBiDi LC, SMTx:1310nm/Rx:1550nm*Check: SFP/SFP+ compatibility reference tableNatively supported
MikroTikS-53LC20D1,25GBiDi LC, SMTx:1550nm/Rx:1310nm*Check: SFP/SFP+ compatibility reference tableNatively supported
MikroTikS-RJ011000/100/10RJ45, Cat5/Cat6N/A*Check: SFP/SFP+ compatibility reference tableNatively supported
AxiomAXG916321000BASE-LXDual LC1310nmCRS125-24G-1S-RMWorks!
FinisarFCLF-8521-310/100/1000RJ45, Cat6N/ARB2011LS-INWorks!
FinisarFCLF-8521-3-MD10/100/1000RJ45, Cat6N/ARB2011LS-INWorks!
FinisarFTRJ8519P1BNL-B110/100/1000 1.25 Gb/s 1000Base-SX EthernetDual LC, MM850nmRB2011LS-INWorks!
FinisarFTLF8519P2BNL10/100/1000 1.25 Gb/s 1000Base-SX EthernetDual LC, MM850nmRB2011LS-INWorks!
FinisarFTRJ1319P1BTL1.25Gb/s 1000Base-LX EthernetDual LC, SM1310nmCCR1009-8G-1S-1S+ and CCR1009-7G-1C-1S+Works!
UnicaSFP-1.25G-T1000MRJ45, Cat6N/ARB2011LS-INWorks!
DellFTLX8571D3BCL1,25GDual LC, MM850nmRB2011LS-INWorks!
UnicaGP-3124-L2CD-C1,25GDual LC, MM1310nmRB2011LS-INWorks!
CiscoGLC-T1.25GRJ45, Cat6N/ARB2011LS-INWorks!
CiscoGLC-SX-MM1000BASE-SX SFP transceiver module for MMF, 1.25GDual LC, MM850nmRB2011LS-INWorks!
CiscoSFP-GE-L1000BASE-LX/LH SFP transceiver module for SMF, 1.25GDual LC, SM1300nmVarious MT hardwareWorks!
6COM6C-SFP-T10/100/1000RJ45, Cat6N/ARB2011LS-INWorks!
6COM6C-WDM-0210BSD1,25GBiDi SC, SMTx:1550nm/Rx:1310nmRB2011LS-INWorks!
6COM6C-WDM-0210ASD1,25GBiDi SC, SMTx:1310nm/Rx:1550nmRB2011LS-INWorks!
6COM6C-SFP-0310D1,25GDual LC, MM1310nmRB2011LS-INWorks!
6COM6C-SFP-0301D1,25GDual LC, MM850nmRB2011LS-INWorks!
IngellenINSP-T(10/100/1000)10/100/1000RJ45, Cat6N/ARB2011LS-INWorks!
IngellenINSPL-53-BX1,25GBiDi LC, MM1550/1310RB2011LS-INWorks!
IngellenINSPL-35-BX1,25GBiDi LC, MM1310/1550RB2011LS-INWorks!
IngellenINSP-LX-SM1,25GDual LC, SM1310nmRB2011LS-INWorks!
IngellenINSP-SX-MM1,25GDual LC, MM850nmRB2011LS-INWorks!
AXCENAXGT-R1T4-05I110/100/1000RJ45, Cat6N/ARB2011LS-INWorks!
AXCENAXGD-37А4-05311,25GBiDi LC, MMTx:1550nm/Rx:1310nmRB2011LS-INWorks!
AXCENAXGD-16А4-05311,25GBiDi LC, MMTx:1310nm/Rx:1550nmRB2011LS-INWorks!
AXCENAXGD-1354-05311,25GDual LC, MM1310nmRB2011LS-INWorks!
AXCENAXGD-5854-05111,25GDual LC, MM850nmRB2011LS-INWorks!
TP-LinkTL-SM311LS1,25GDual LC, SM1310nmRB2011LS-INWorks!
TP-LinkTL-SM311LM1,25GDual LC, MM850nmCCR1036 12G-4SWorks!
OPTICOPTIC-SFP-3524S-02-SC1,25GBiDi SC, SMTx:1310nm/Rx:1550nmRB2011UAS-RM, RB260GSWorks!
OPTICOPTIC-SFP-5324S-02-SC1,25GBiDi SC, SMTx:1550nm/Rx:1310nmRB2011UAS-RM, RB260GSWorks!
OPTICOPTIC-SFP-S1203-L3302-LC1,25GBiDi LC, SMTx:1310nm/Rx:1550nmRB2011UAS-RM, RB260GSWorks!
OPTICOPTIC-SFP-S1205-L3302-LC1,25GBiDi LC, SMTx:1550nm/Rx:1310nmRB2011UAS-RM, RB260GSWorks!
ROBOFiberSFP-7120-551,25GDual LC, SM1550nmCCR1036-12G-4S, RB2011Works!
ROBOFiberSFP-7120-WA1,25GBiDi LC, MMTx:1490nm/Rx:1550nmCCR, RB2011Works!
ROBOFiberSFP-7120-WB1,25GBiDi LC, MMTx:1550nm/Rx:1490nmCCR, RB2011Works!
EnguitySFP-3647603KM.b1310 XT1,25GBiDi LC, SMTx:1310nm/Rx:1550nmCCR, RB2011, RB260GSWorks!
EnguitySFP-3647603KM.b1550 XT1,25GBiDi LC, SMTx:1550nm/Rx:1310nmCCR, RB2011, RB260GSWorks!
EnguitySFP-3647610KM.b1490 XT1,25GBiDi LC, SMTx:1490nm/Rx:1550nmCCR, RB2011, RB260GSWorks!
EnguitySFP-3647610KM.b1550 XT1,25GBiDi LC, SMTx:1550nm/Rx:1490nmCCR, RB2011, RB260GSWorks!
AdvOptics MSAGLC-SX-MM1,25GBiDi LC, MMTx:1310nm/Rx:1310nmCCR, RB2011, RB260GSWorks!
AdvOptics MSAGLC-ZX-SM1,25GBiDi LC, SMTx:1310nm/Rx:1310nmCCR, RB2011, RB260GSWorks!
ProlineGLC-BX-D20-PRO1,25GBiDi LC, SMTx:1490nm/Rx:1310nmCRS125Works!
ProlineGLC-BX-D40-PRO1,25GBiDi LC, SMTx:1310nm/Rx:1490nmCRS125Works!
Foundry NetworksE1MG-BXU-AC1,25GBiDi LC, SMTx:1310nm/Rx:1490nmRB3011UiAS, hAP acWorks!
AvagoSFBR-5799APZ1,25GDual LC, MM850nmCRS326, CRS112Works in 1Gbps mode!
EltexNTU-SFP-1001,25GSCN/ARB4011iGS+Works!

SFP+ modules​

BrandModelDistanceRateConnector/Cable typeWavelengthTested withWorks / Doesn't
MikroTikS+85DLC03D300m10GDual LC, MM850nmAll MikroTik products with SFP/SFP+ interfacesNatively supported
MikroTikS+31DLC10D10km10GDual LC, SM1310nmAll MikroTik products with SFP/SFP+ interfacesNatively supported
MikroTikS+23LC10D10km10GBiDi LC, SMTx:1270nm/Rx:1330nmAll MikroTik products with SFP/SFP+ interfacesNatively supported
MikroTikS+32LC10D10km10GBiDi LC, SMTx:1330nm/Rx:1270nmAll MikroTik products with SFP/SFP+ interfacesNatively supported
MikroTikS+DA00011m10GTwinax CopperN/AAll MikroTik products with SFP/SFP+ interfacesNatively supported
MikroTikS+DA00033m10GTwinax CopperN/AAll MikroTik products with SFP/SFP+ interfacesNatively supported
MikroTikS+RJ10various, depending on link rate. Check brochure for more details10G/5G/2.5G/1G/100M/10MRJ45 - Cat5E/Cat6/Cat7N/AAll MikroTik products with SFP+ interfacesNatively supported
AtopAPSP55B30CDL4040km10GDual LC, SM1550nmCRS series, CCR series devices with SFP+ interfacesDoes NOT work!
CiscoSFP-10G-LR10km10GDual LC, SM1310nmRB2011LS-INWorks!
Dell (Finisar)FTLX8571D3BCL300m10GDual LC, MM850nmMost of the SFP/SFP+ MikroTik productsWorks!
Juniper (Finisar)FTLX8571D3BCL-J1300m10GDual LC, MM850nmMost of the SFP/SFP+ MikroTik productsWorks!
Intel (Finisar)FTLX8571D3BCV-IT300m10GDual LC, MM850nmMost of the SFP/SFP+ MikroTik productsWorks!
OEM (Juniper?)EX-SFP-10GE-SR-OEM300m10GDual LC, MM850nmMost of the SFP/SFP+ MikroTik productsWorks!
FiberstoreSFP-10G31-4040km10GDual LC, SM1310nmCRS series, CCR series devices with SFP+ interfacesWorks!
FiberstoreSFP-10G55-4040km10GDual LC, SM1310nmCRS series, CCR series devices with SFP+ interfacesWorks!
FiberstoreSFP-10G32-4040km10GBiDi LC, SMTx:1330nm/Rx:1270nmCRS series, CCR series devices with SFP+ interfacesWorks!
FiberstoreSFP-10G23-4040km10GBiDi LC, SMTx:1270nm/Rx:1330nmCRS series, CCR series devices with SFP+ interfacesWorks!
OptechOPAK-TX1-00-C30m10GRJ45 - Cat 6a/7 CableN/ACCR, CCR, CSS series devices with SFP+ interfacesWorks, starting with v6.40rc20 RouterOS build.
ProLabsSFP-10G-T-C30m10GRJ45 - Cat 6a/7 CableN/ACCR, CCR, CSS series devices with SFP+ interfacesWorks, starting with v6.40rc20 RouterOS build.

U.2 Disks for RDS​

The RDS2216-2XG-4S+4XS-2XQ supports U.2 SSD drives of any capacity, with a physical height limitation of 7mm. While any drive meeting this physical requirement should be supported, the following models has been verified:

  • Samsung PM9A3
  • Samsung PM983
  • Micron 7300 series
  • Micron 7400 series
  • WD DC SN640
  • Transcend UTE210T
  • Innodisk 4TG2-P
